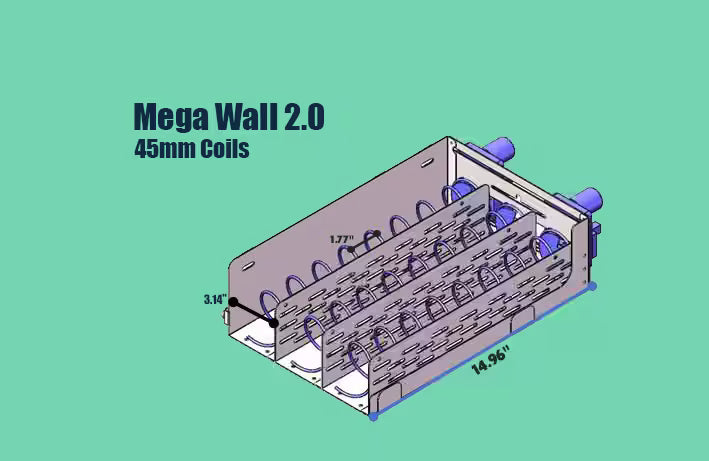

  • Mega Wall 2.0 vending machine tray with 45mm coils showing spiral spacing and tray dimensions for product compatibility and efficient vending setup.
1 17

Coil 5-Pack: Select Size

Coil 5-Pack: Select Size

  • Support-VapeTMU.S. Based Support
  • Located in Cleveland OH
  • 1 Year Warranty
Trustpilot
$45.00 USD
$45.00 USD
Sale Sold out
Shipping calculated at checkout.
Size
Machine Fit

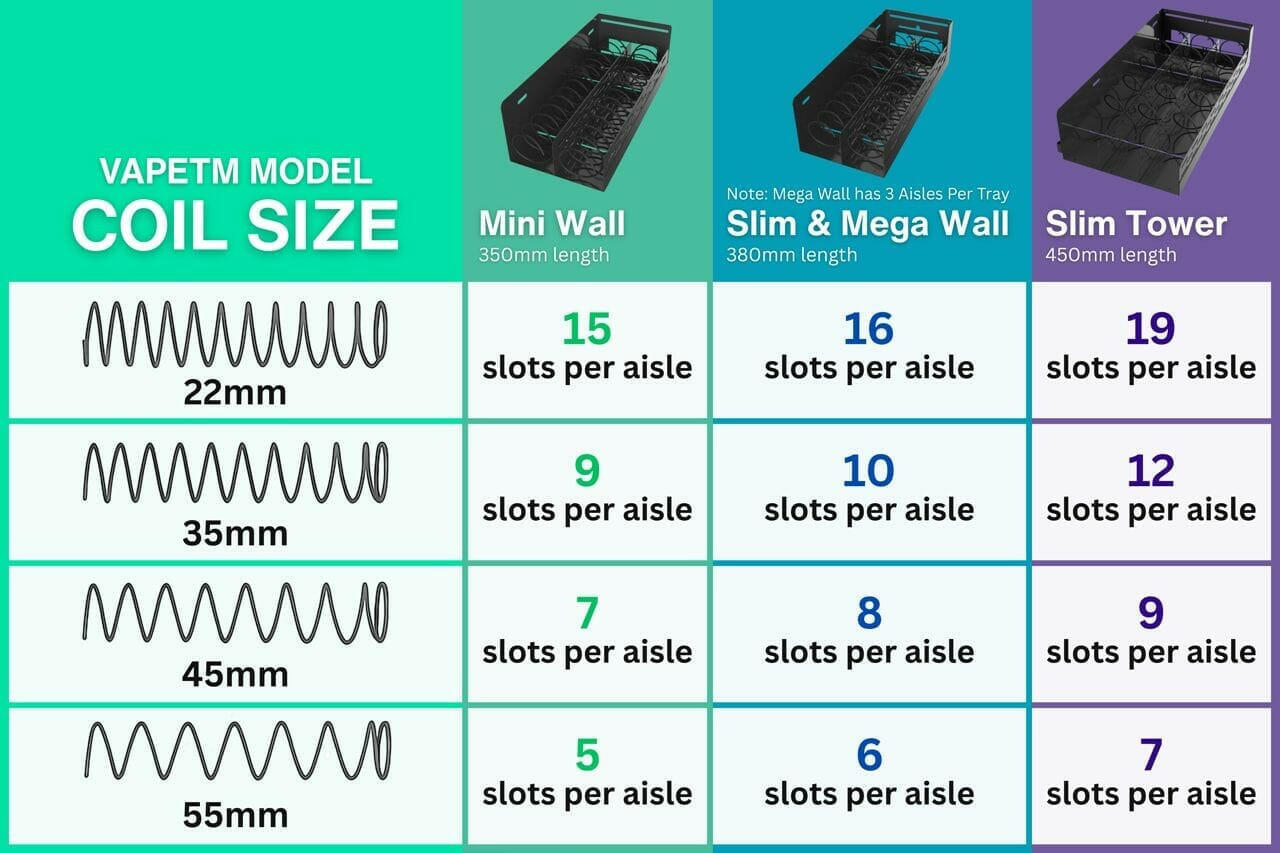

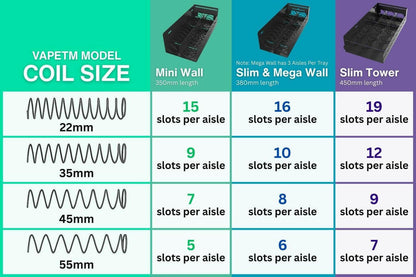

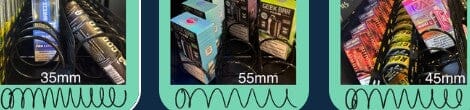

VTM Vending Coil Sizes and Product Capacity

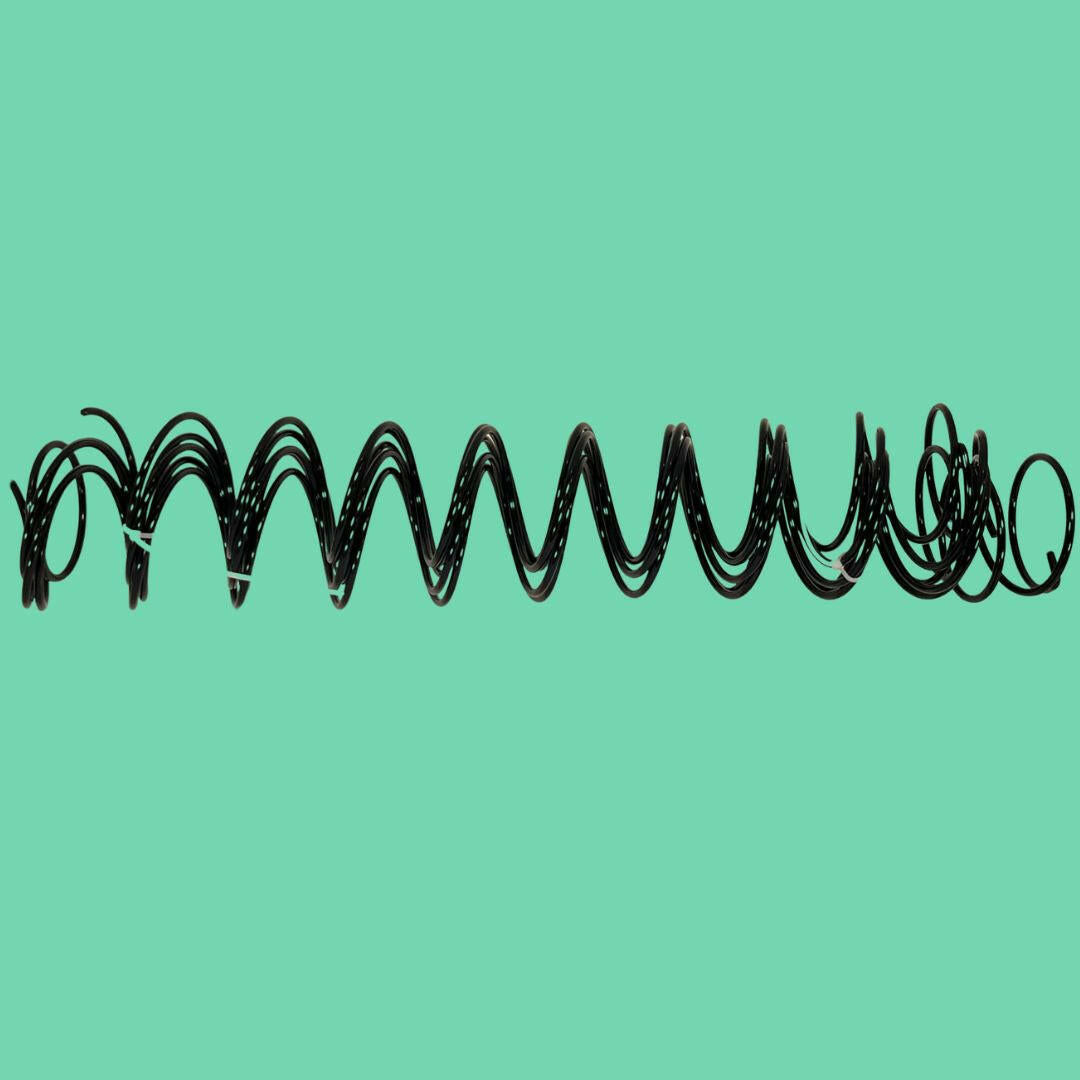

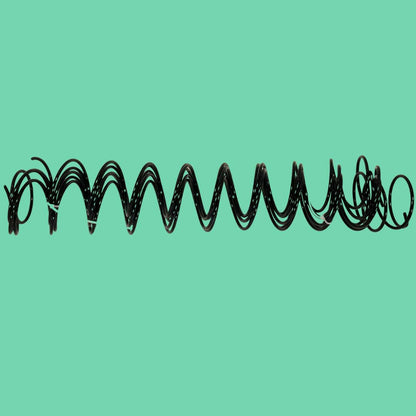

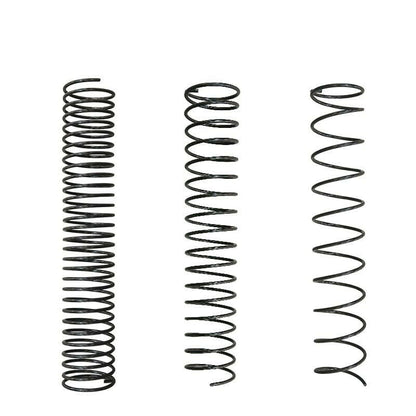

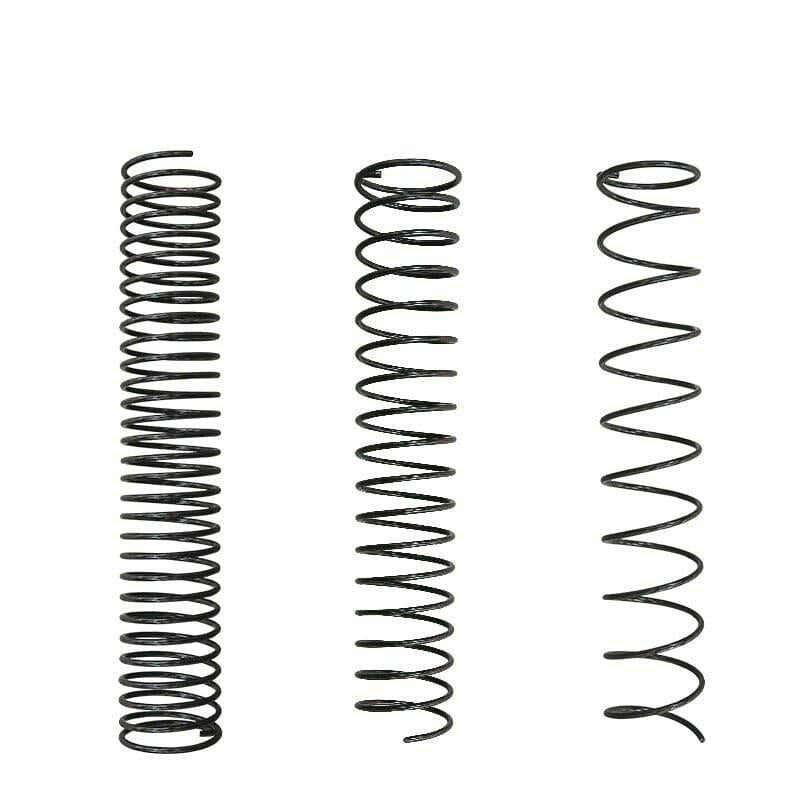

VapeTM vending machine replacement coil 5-pack for Mini Wall, Slim Wall, Mega Wall, and Slim Tower machines, available in 22mm, 35mm, 45mm, and 55mm sizes.
  • 22mm: Engineered for Sports & Trading Card Packs. Shop TCG Kiosks

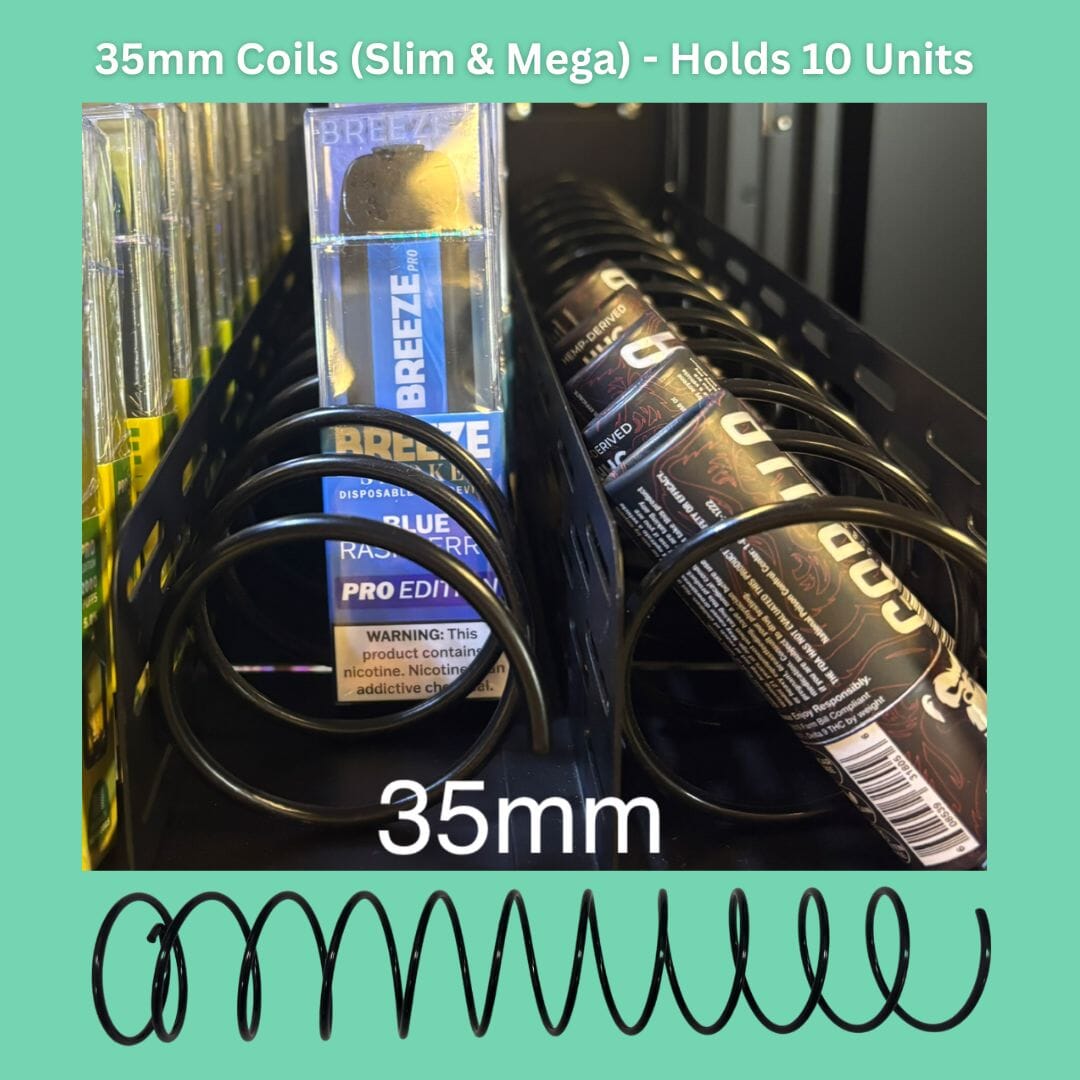

  • 35mm: Ideal for slimmer vapes and nicotine pouches.

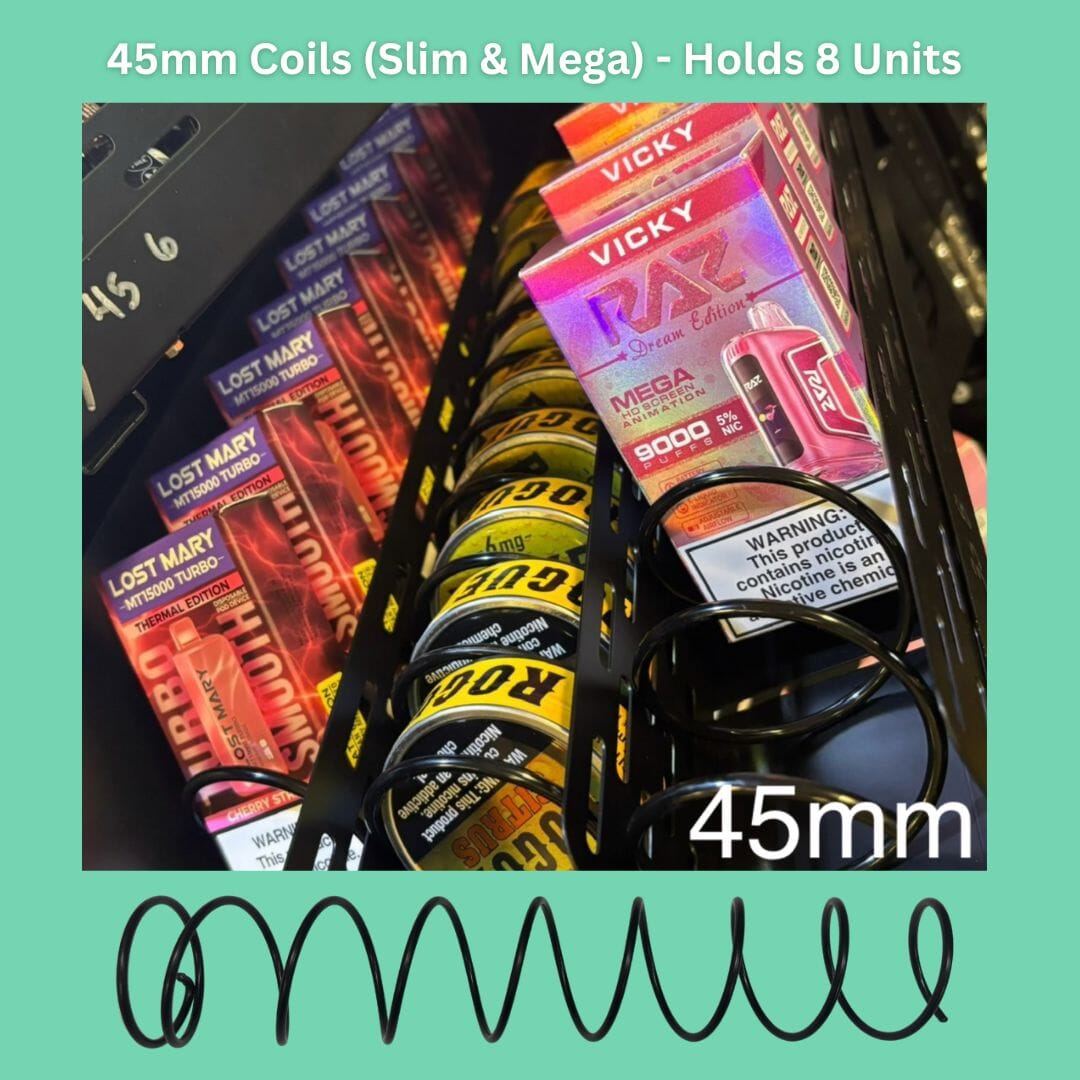

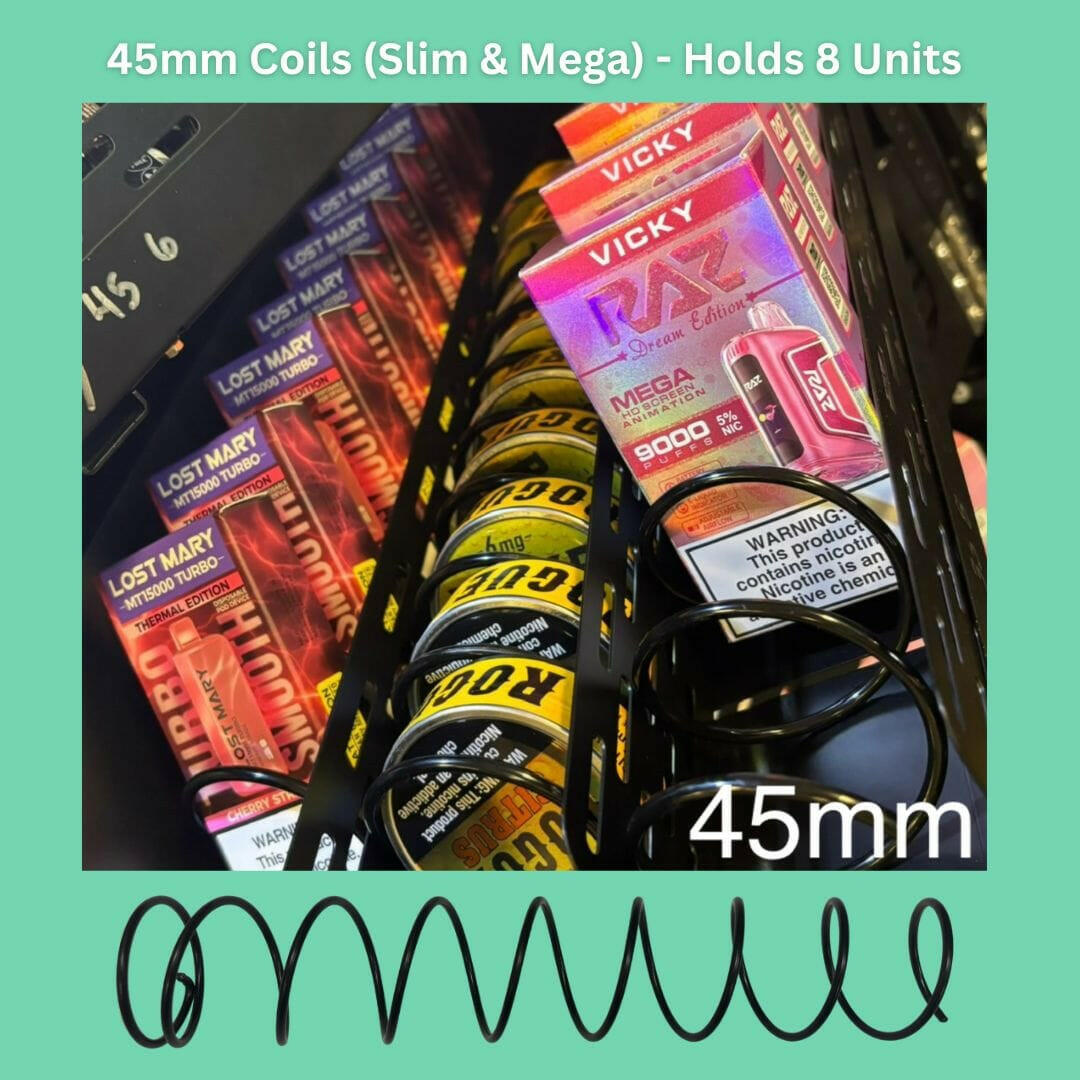

  • 45mm: Fairly versatile for wide variety.
  • 50mm: A little more clearance. Stock configuration.

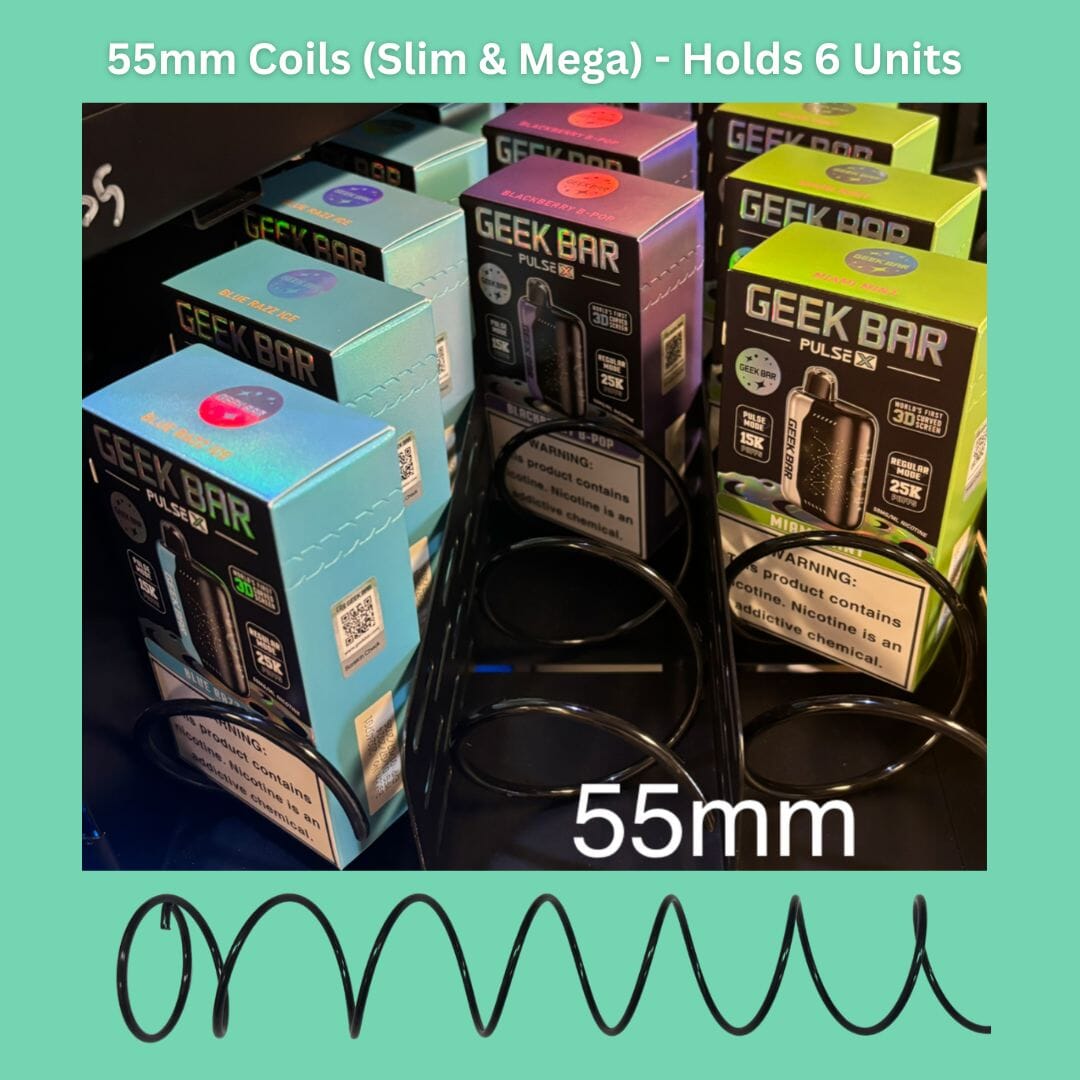

  • 55mm: Great for larger vapes that are in the box.
  • Custom: We can also customize coil sizes to fit your product needs.
Mini Wall
22mm Mini Wall coil dimensions
35mm Mini Wall coil specs
45mm Mini Wall coil dimensions
50mm Mini Wall coil spacing
55mm Mini Wall coil dimensions
70mm Mini Wall coil specs
Slim Wall
22mm Slim Wall coil dimensions
35mm Slim Wall coil layout
45mm Slim Wall coil reference
50mm Slim Wall coil guide
55mm Slim Wall coil specs
70mm Slim Wall coil reference
Mega Wall 2.0
35mm Mega Wall 2.0 coil dimensions
45mm Mega Wall 2.0 coil tray dimensions
50mm Mega Wall 2.0 coil dimensions
55mm Mega Wall 2.0 coil dimensions
70mm Mega Wall 2.0 coil dimensions
Slim Tower 2.0
22mm Slim Tower 2.0 coil specs
35mm Slim Tower 2.0 coil dimensions
45mm Slim Tower 2.0 coil capacity
50mm Slim Tower 2.0 coil guide
55mm Slim Tower 2.0 coil dimensions
70mm Slim Tower 2.0 coil dimensions
