Mini Wall: Most-compact, Wall-Mounted Vape Vending Machine

Mini Wall: Most-compact, Wall-Mounted Vape Vending Machine

  • Support-VapeTMU.S. Based Support
  • Located in Cleveland OH
  • 1 Year Warranty
Regular price $2,850.00 USD
Regular price Sale price $2,850.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Configuration
View in 3D

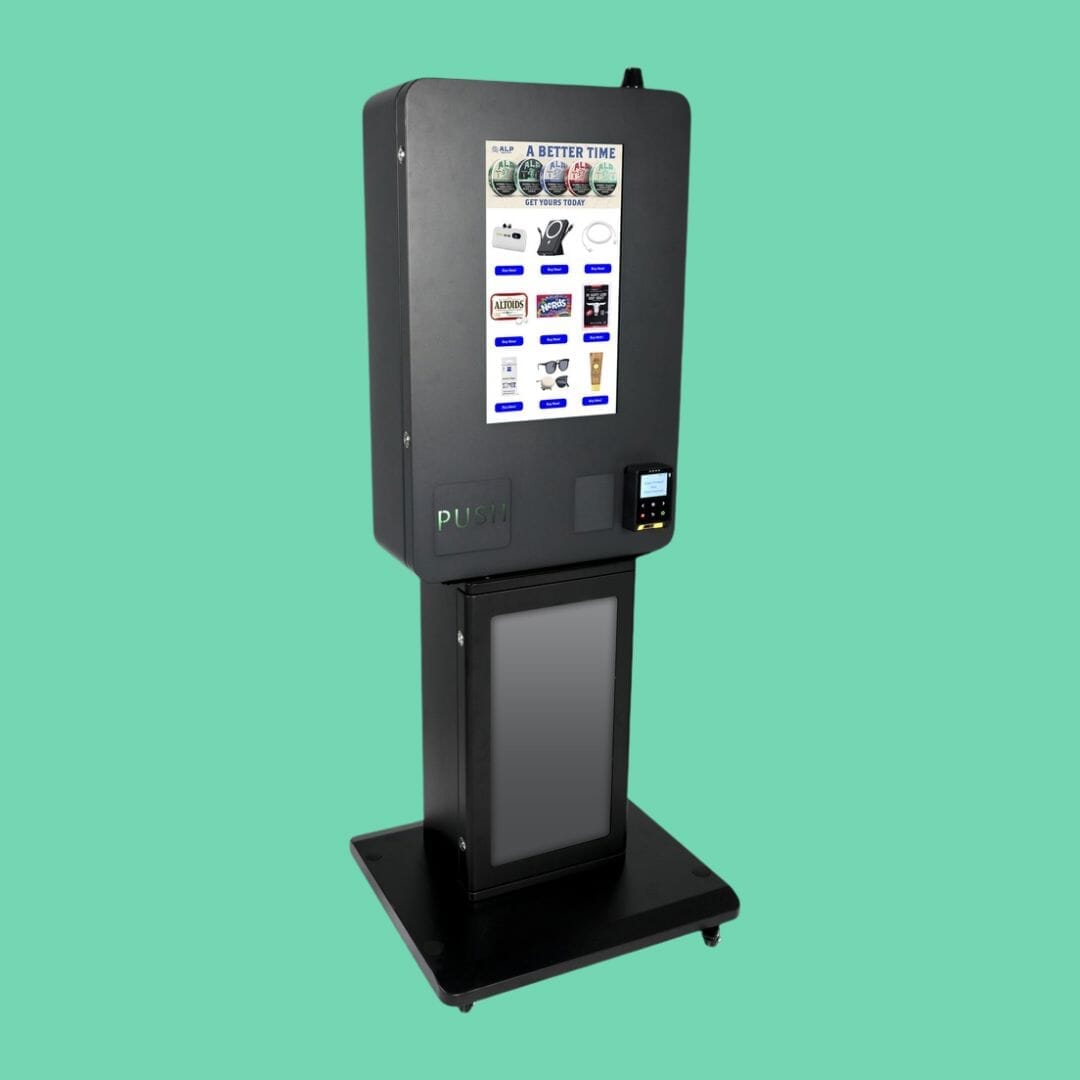

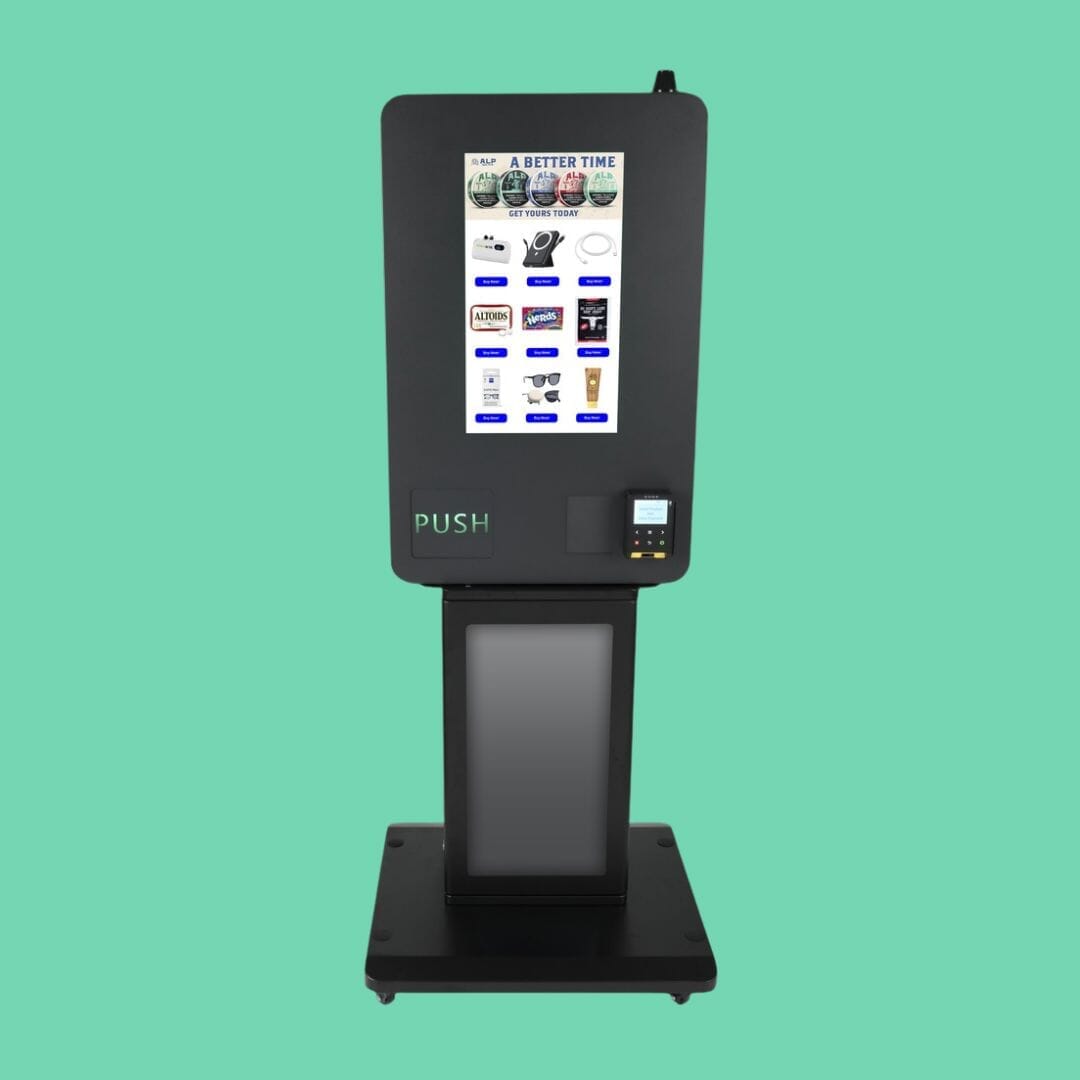

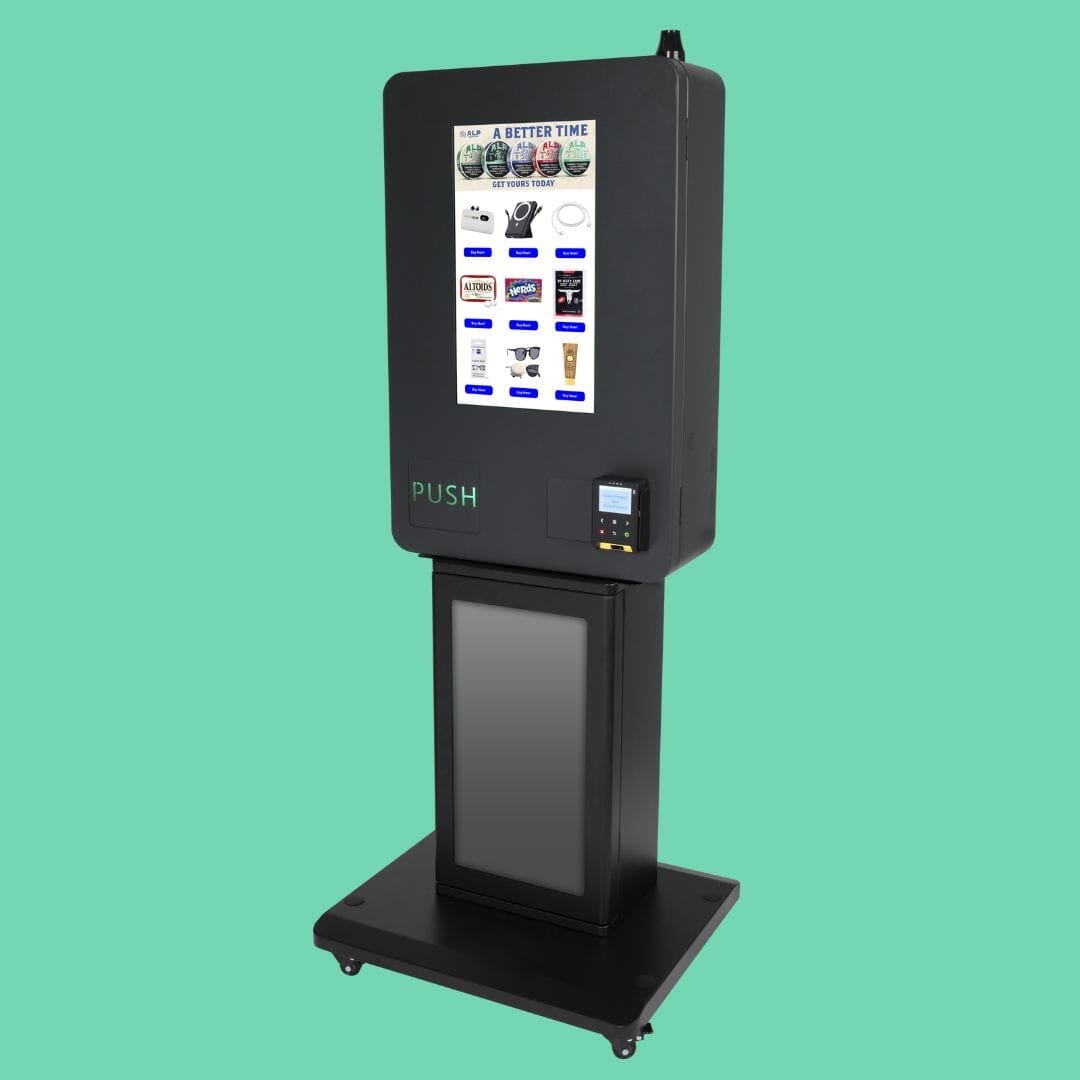

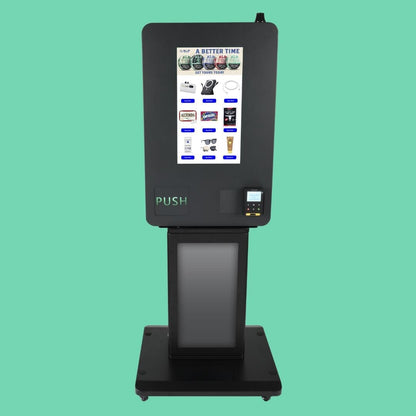

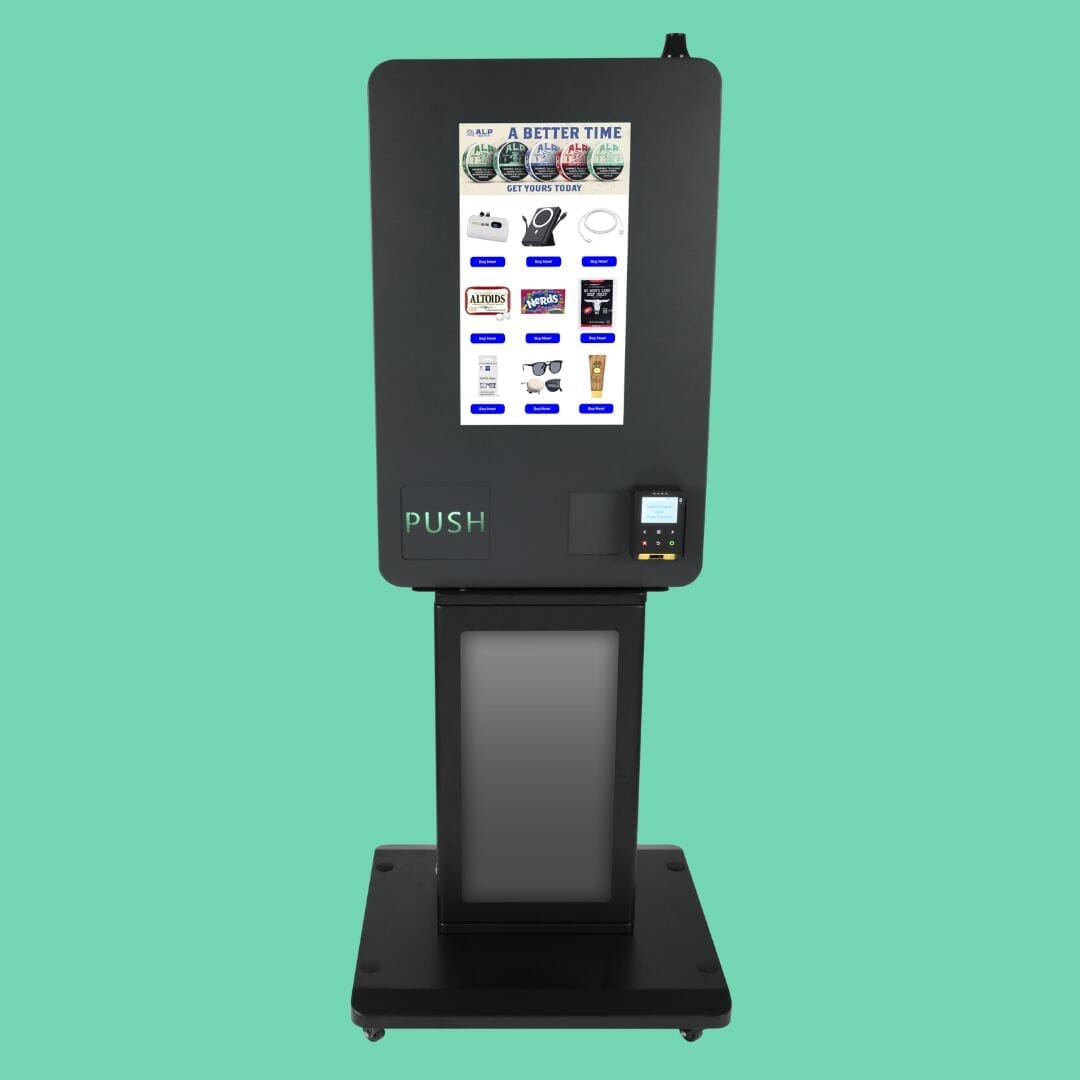

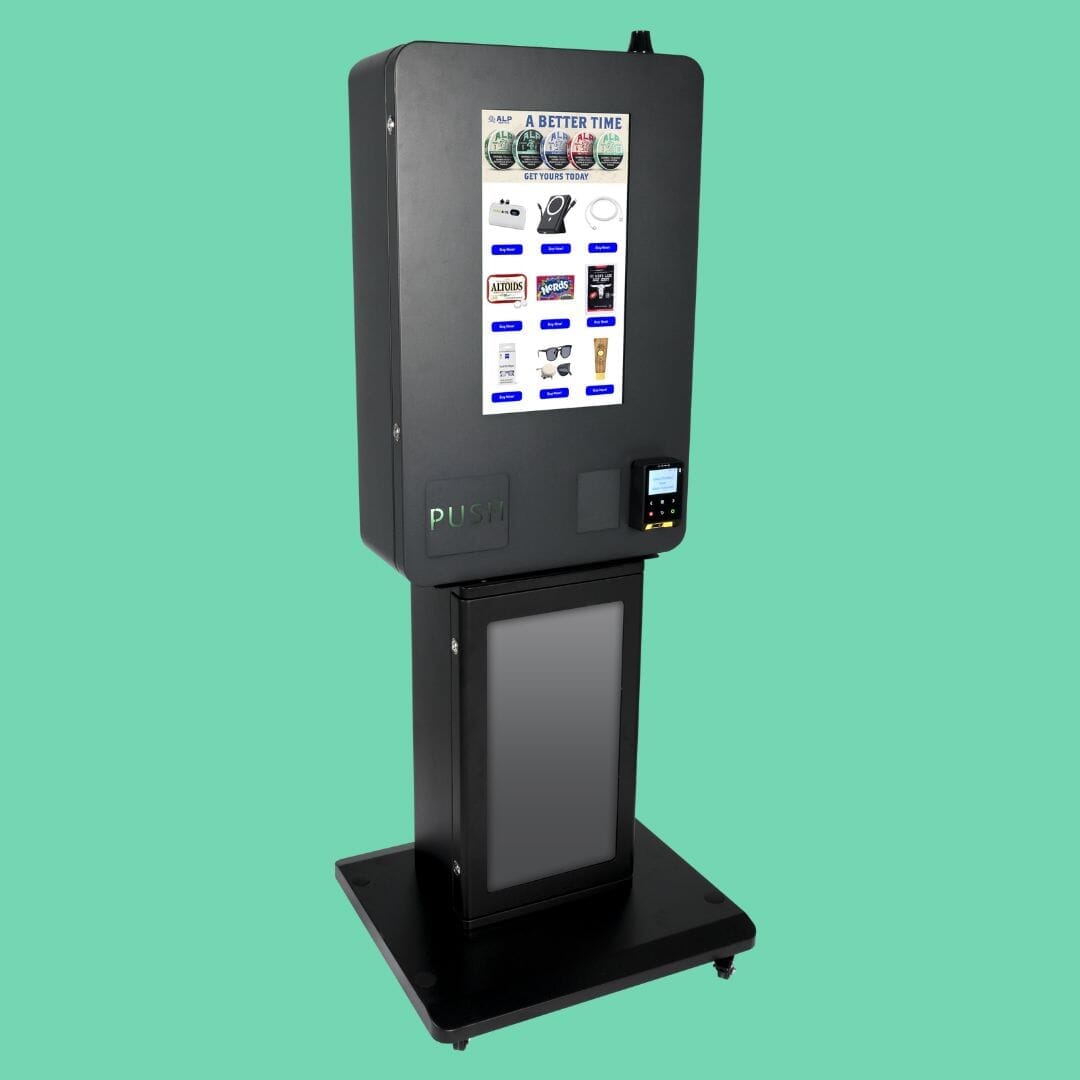

Mini Wall-Mounted Vape Vending Machine – Affordable, Compact, Sleek

New Feature: The modular design supports easy add-ons such as an ID Scanner or Bill Validator, providing enhanced compliance and flexibility for different venue needs.

The Mini Wall-Mounted Vape Vending Machine is one of the most affordable and compact vending solutions on the market. Known for its sleek design, product versatility, and reliable performance, this ultra-small unit is ideal for bars, restaurants, and entertainment venues that want to offer vape products without sacrificing valuable floor space.

VapeTM Mini Wall vending machine coil size chart showing 22mm, 35mm, 45mm, 50mm, and 55mm coil configurations with slot counts for each size. Despite its compact size, this wall-mounted vending machine holds up to 72 disposable vapes and supports up to eight different flavors or SKUs. It arrives ready to install with a secure wall-mounting bracket and an integrated cashless credit card reader. Slide-out trays make restocking quick and easy, ensuring smooth and efficient daily operations.

Engineered for modern environments, the Mini Wall represents the perfect balance of smart design and reliable performance. Machines now come equipped with 45 mm coils

  • Aisle Configuration: 8 aisles, supporting up to 8 flavors or brands. Vends disposable vapes, nicotine pouches, pre-rolls, and hemp or CBD-based products.
  • Durability: 1.8mm thick metal casing with a double-locking mechanism for enhanced security.
  • Display: 21.5” high-brightness touchscreen monitor with adjustable brightness for different environments.
  • Connectivity: Android board with Wi-Fi receiver and high-gain antenna for stable network performance.
  • Payment System: Integrated Nayax or Kiosoft cellular card reader with EMV and tap-to-pay functionality for credit card transacitons.
  • Warranty: 1-year comprehensive manufacturer warranty.
  • Remote Management Software: 1-year subscription included. Continued access for $29/month after the first year. Includes both web-based dashboard and mobile app control.

Mini Wall Specs

Tap a section to expand details

Mini Wall
Physical
Dimensions (W x H x D)
21.6" x 33.3" x 8.7"
Weight (lbs)
66 lbs
Material
1.8mm steel casing, powder-coated finish
Locking Mechanism
Dual barrell, standard keys
Modular Plate
Yes, ID Scanner optional
Vending + Tech
Display
21.5" Touchscreen
Number of Aisles
8 Aisles
Capacity
~70 depending on coil size
Payment Model
Nayax VPOS Touch
Network
WiFi / 2G / 4G (Ethernet Port and WiFi Receiver)
OS
Android/iOS
Software Stack
VTM Vending
Power + Environment
Power Consumption
50W
Voltage Supply
110VAC 60Hz
Current Draw (110V)
0.5–0.6 A
Operating Temperature
41°F to 104°F

1-Year Comprehensive Warranty →

Download Mini Wall Brochure
